Gradient-Based Optimization

and how we do it in G-ADOPT (and Firedrake)

Sia Ghelichkhan and the G-ADOPT team

Forward modelling as a functional:

Where:

• \mathbf{u} are the state variables (temperature, velocity, pressure)
• \mathbf{m} are the control parameters (material properties, initial conditions)
• \mathcal{F} is the forward operator (solves the governing PDE)

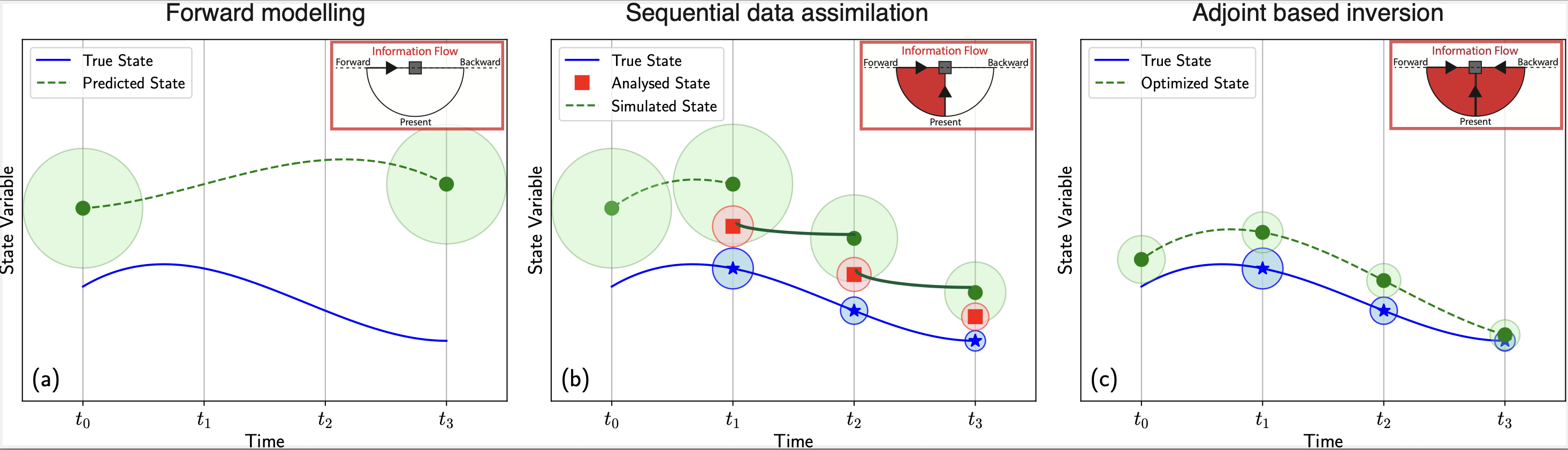

The forward problem:

Given \mathbf{m}, compute \mathbf{u}

Example: Given initial temperature T_{IC}, simulate mantle convection to get velocity \mathbf{u} and temperature T

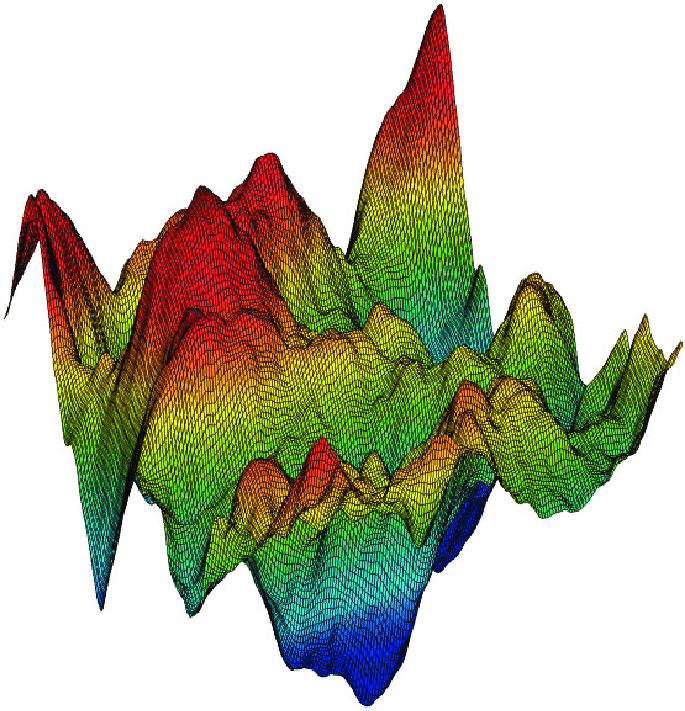

The inverse problem asks the opposite question:

Given observations \mathbf{u}_{obs}, find the control parameters \mathbf{m}

Example — 1: Given observed surface velocities, find the initial temperature T_{IC} that best explains them

Example — 2: Given observed surface deformation, find the rheology, or ice history that best explains them.

Challenge: This is usually ill-posed and requires regularization!

Key insight: We solve inverse problems by formulating them as optimization problems!

Measure misfit between predictions and observations:

Add regularization to stabilize the problem:

Components:

• Data misfit: How well do we match observations?
• Damping: Penalize large deviations from prior
• Smoothing: Penalize rough solutions

The key idea:

J depends on both \mathbf{u} (state) and \mathbf{m} (control)

But \mathbf{u} is determined by \mathbf{m} through the forward problem!

Reduced functional: \hat{J}(\mathbf{m}) = J(\mathbf{u}(\mathbf{m}), \mathbf{m})

Now we have an unconstrained optimization problem: \mathbf{m}^* = \arg\min_{\mathbf{m}} \hat{J}(\mathbf{m})

Gradient-free methods (e.g., grid search):

• Try many values of \mathbf{m}
• Evaluate \hat{J}(\mathbf{m}) for each
• Pick the best one

Cost: O(N_{controls}) forward solves per iteration

For mantle convection: Millions of unknowns → impractical!

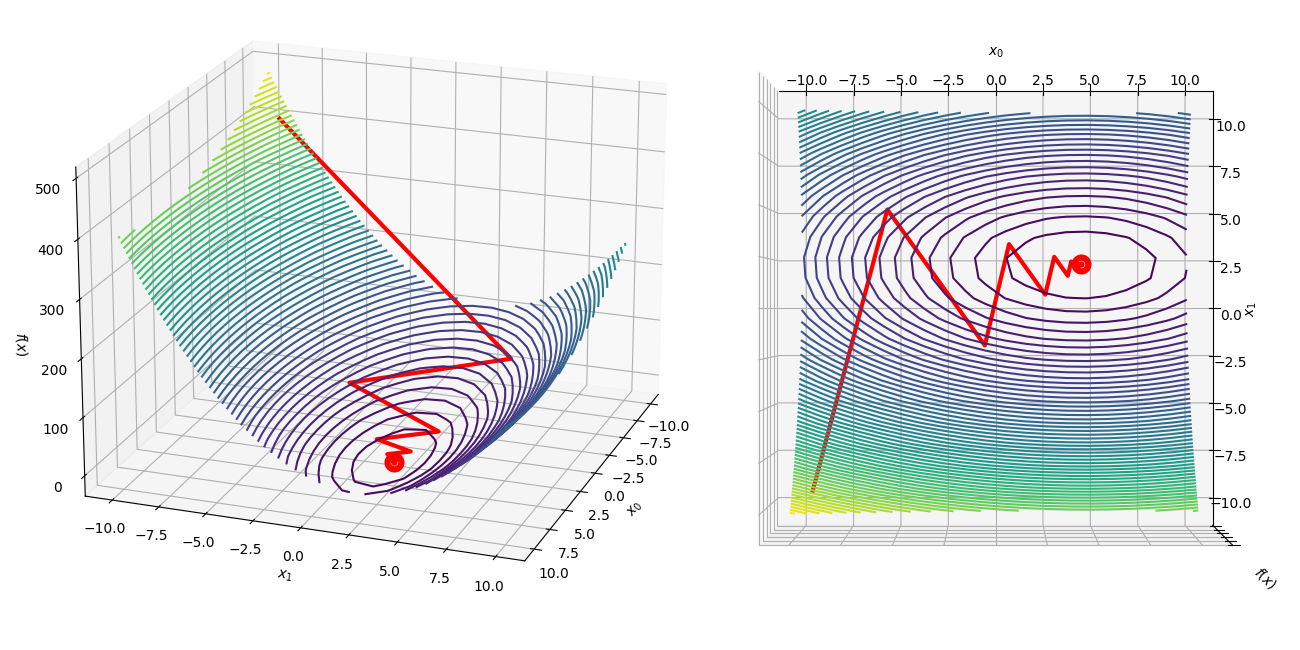

Gradient-based methods:

• Compute gradient \frac{\partial \hat{J}}{\partial \mathbf{m}}
• Move “downhill” in the direction of steepest descent
• Update: \mathbf{m}_{k+1} = \mathbf{m}_k - \alpha \frac{\partial \hat{J}}{\partial \mathbf{m}}

Cost: One gradient computation (adjoint solve) per iteration

Naive approach (finite differences):

Problem: Need N_{controls} forward solves to compute full gradient!

For mantle convection: Millions of parameters → millions of forward solves!

The gradient via chain rule:

The expensive part: \frac{\partial \mathbf{u}}{\partial \mathbf{m}} requires solving sensitivity equations

Adjoint trick: Introduce adjoint variables \boldsymbol{\lambda} such that:

The adjoint equation:

Cost: One forward solve + one adjoint solve

Firedrake + pyadjoint automates the adjoint derivation:

from firedrake import *
from firedrake.adjoint import *

# Define control
T_IC = Function(Q, name="InitialTemperature")
control = Control(T_IC)

# Solve forward problem
T = solve_forward_problem(T_IC)

# Define objective functional
J = assemble(0.5 * (T - T_obs)**2 * dx)

# Create reduced functional
J_hat = ReducedFunctional(J, control)

# Compute derivative automatically!
dJ_dm = J_hat.derivative()

What happens under the hood:

• pyadjoint “tapes” all forward operations
• Automatically derives adjoint equations
• Solves adjoint system backwards
• Computes gradient

During forward solve, pyadjoint records:

• Every solve statement
• Every function assignment
• Dependencies between variables

The tape stores:

For adjoint solve, pyadjoint:

• Traverses tape backwards
• For each forward operation, executes its adjoint
• Assembles the full gradient via chain rule

from gadopt import *
from gadopt.inverse import *

# 1. Set up forward problem
T_IC = Function(Q1, name="Control")

# 2. Solve forward problem
T_final, u = solve_mantle_convection(T_IC)

# 3. Define objective
J = 0.5 * assemble((T_final - T_obs)**2 * dx)
J += 0.5 * beta_s * assemble(dot(grad(T_IC),
                                  grad(T_IC)) * dx)

# 4. Create reduced functional
J_hat = ReducedFunctional(J, Control(T_IC))

# 5. Optimize using ROL
T_IC_opt = minimize(J_hat, method='ROL',
                    options={'General': {...}})

Key steps:

1. Define control parameters
2. Solve forward problem
3. Compute objective
4. Automatic adjoint derivation
5. Gradient-based optimization

Core Concepts:

• Inverse problem: Find \mathbf{m} from observations
• Reduced functional: \hat{J}(\mathbf{m}) = J(\mathbf{u}(\mathbf{m}), \mathbf{m})
• Adjoint method: Efficient gradient computation
• Optimization: Iteratively minimize \hat{J}

Firedrake + G-ADOPT provide:

• Automatic adjoint derivation (pyadjoint)
• Reduced functional creation
• Gradient computation via .derivative()
• Integration with ROL optimizer
• Mesh-independent convergence
